Fabrication equipment for sale
Scotchman 4014-T 40-ton ironworker

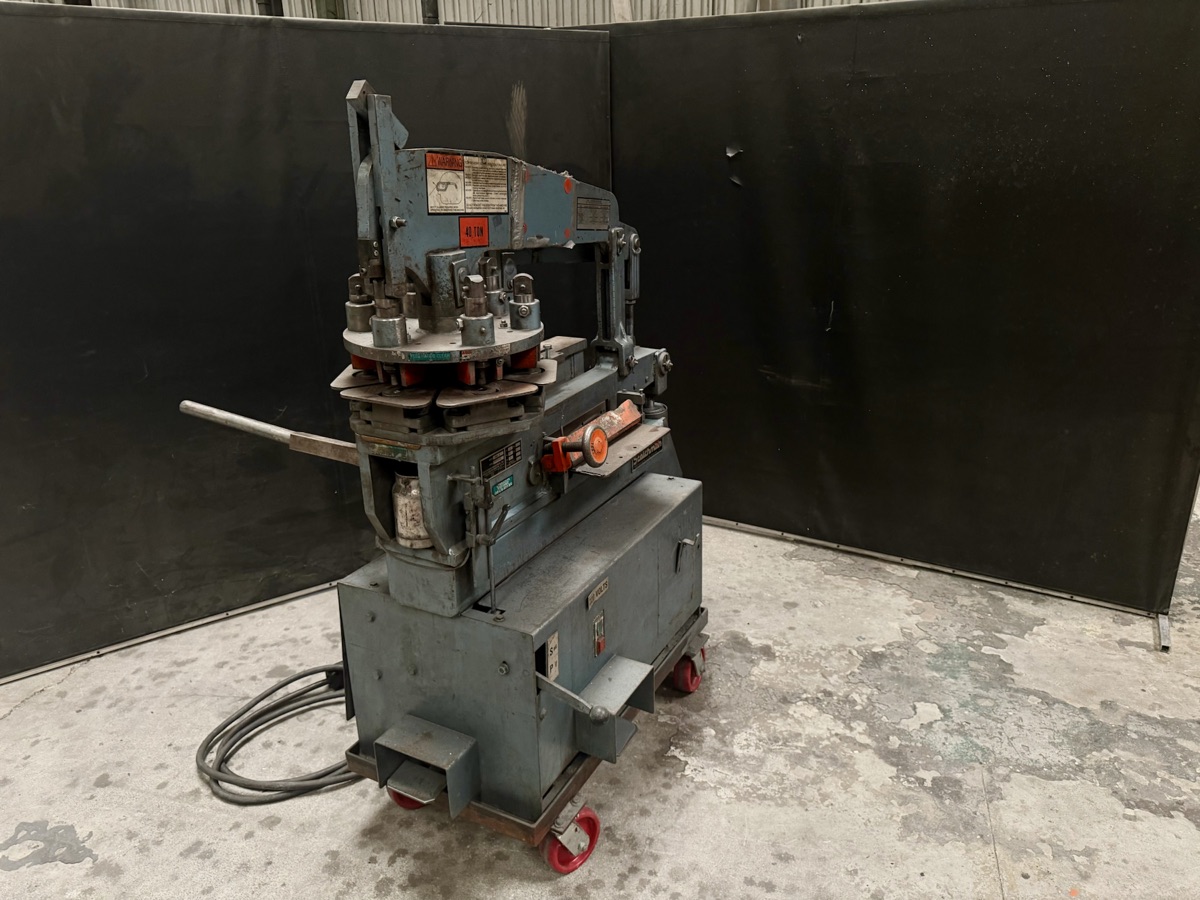

Compact multi-station ironworker with a revolving turret punch station and assorted installed tooling.
Versatile shop fabrication machine

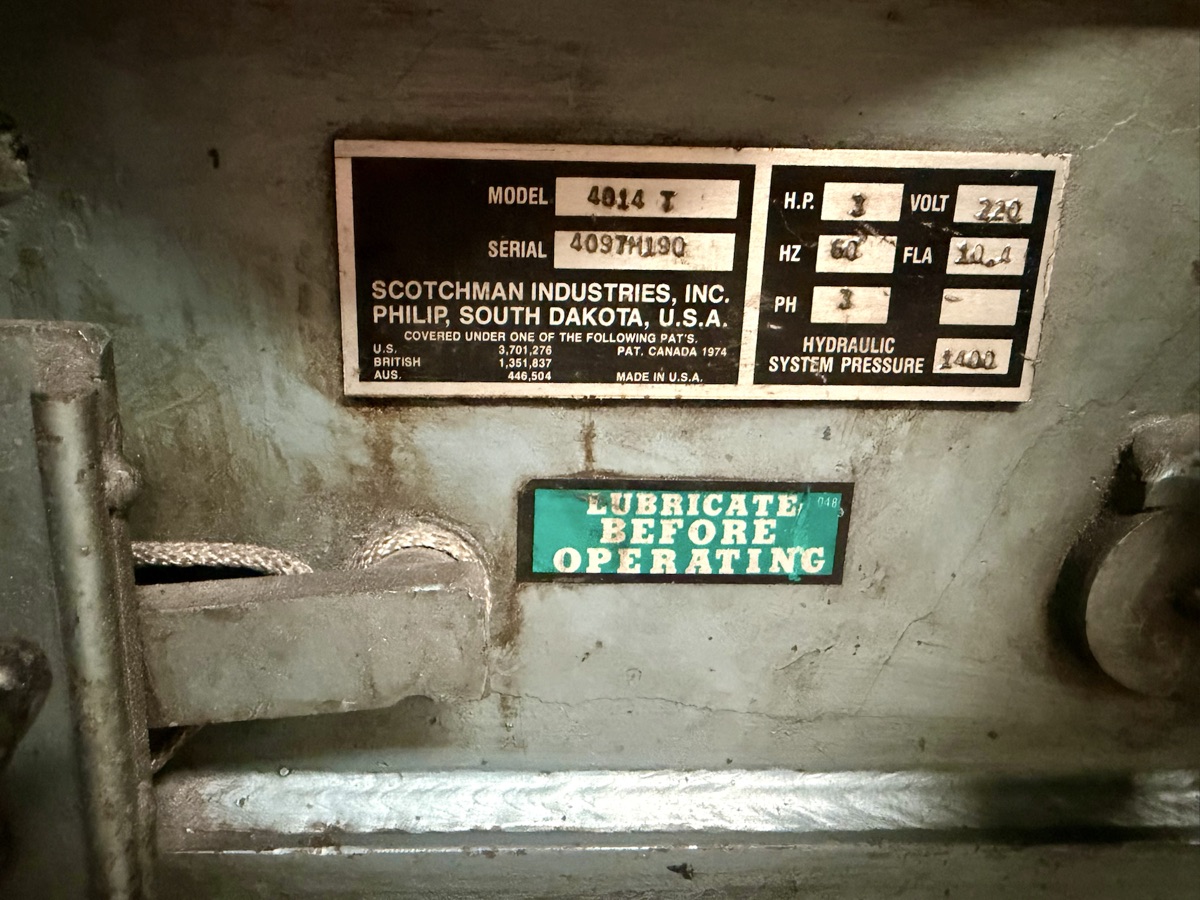

The identification plate confirms Scotchman model 4014-T, serial number 4097M190. It has a 3 HP, 220-volt, three-phase motor and a hydraulic system rated at 2,400 PSI. The machine is marked for a 40-ton capacity.

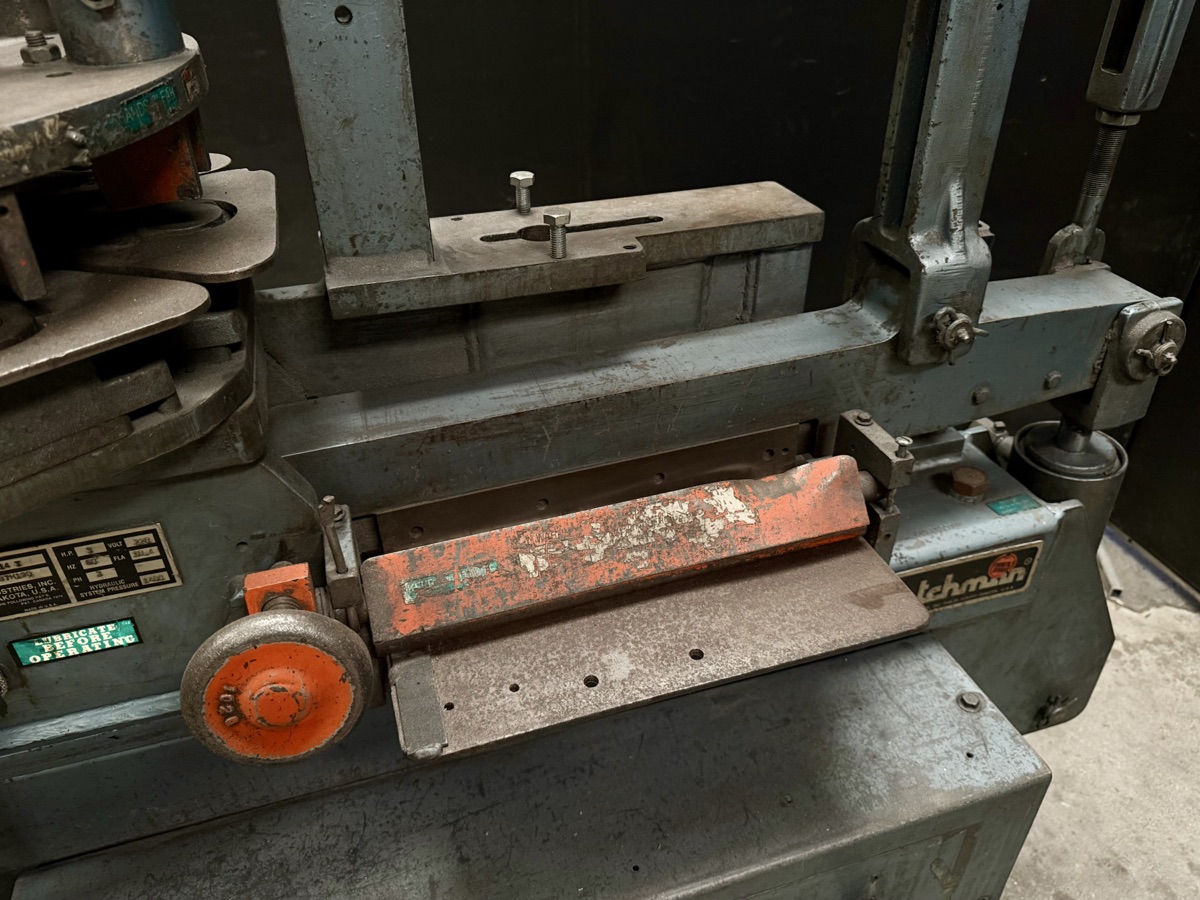

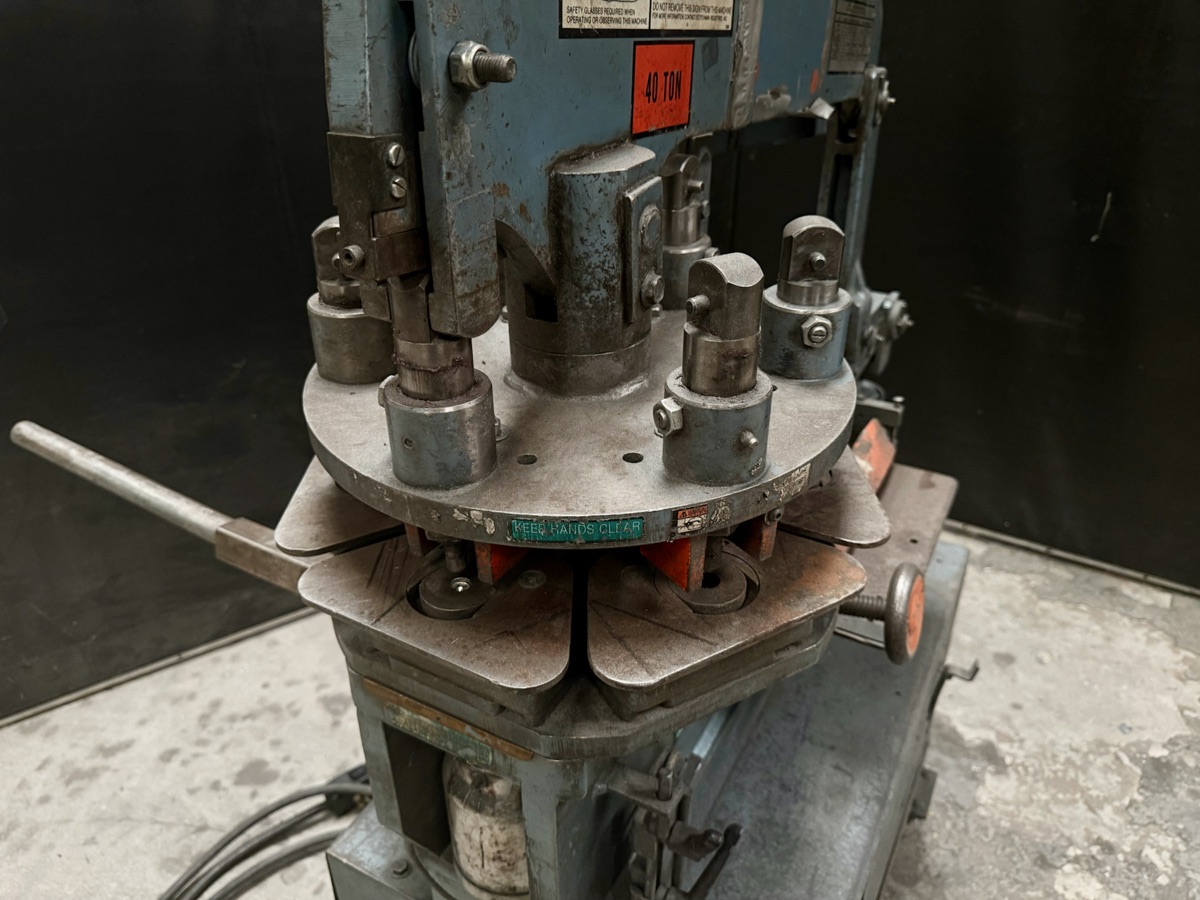

Photographs show a revolving turret punch with multiple installed punches, a flat-bar shear, angle-shear tooling, a foot control, and a wheeled base. Operating condition and individual station capacities have not been independently verified. It is offered as-is, where-is; the buyer must verify condition, operation, included tooling, and capacities during inspection.
- 40-ton rated-capacity marking
- 3 HP · 220 V · three-phase power
- Revolving turret punch station
- Flat-bar shear and angle-shear tooling
- Installed punches and pictured accessories
- Offered as-is, where-is in San Jose, California
- Manufacturer
- Scotchman Industries, Inc.
- Model
- 4014-T
- Serial number
- 4097M190
- Rated capacity
- 40 tons
- Motor
- 3 HP
- Electrical
- 220 V · 3-phase · 60 Hz · 10.2 FLA
- Hydraulic pressure
- 2,400 PSI
- Punch station
- Revolving turret with installed punches shown
- Controls
- Foot pedal shown
- Mobility
- Mounted on casters
- Location
- San Jose, California

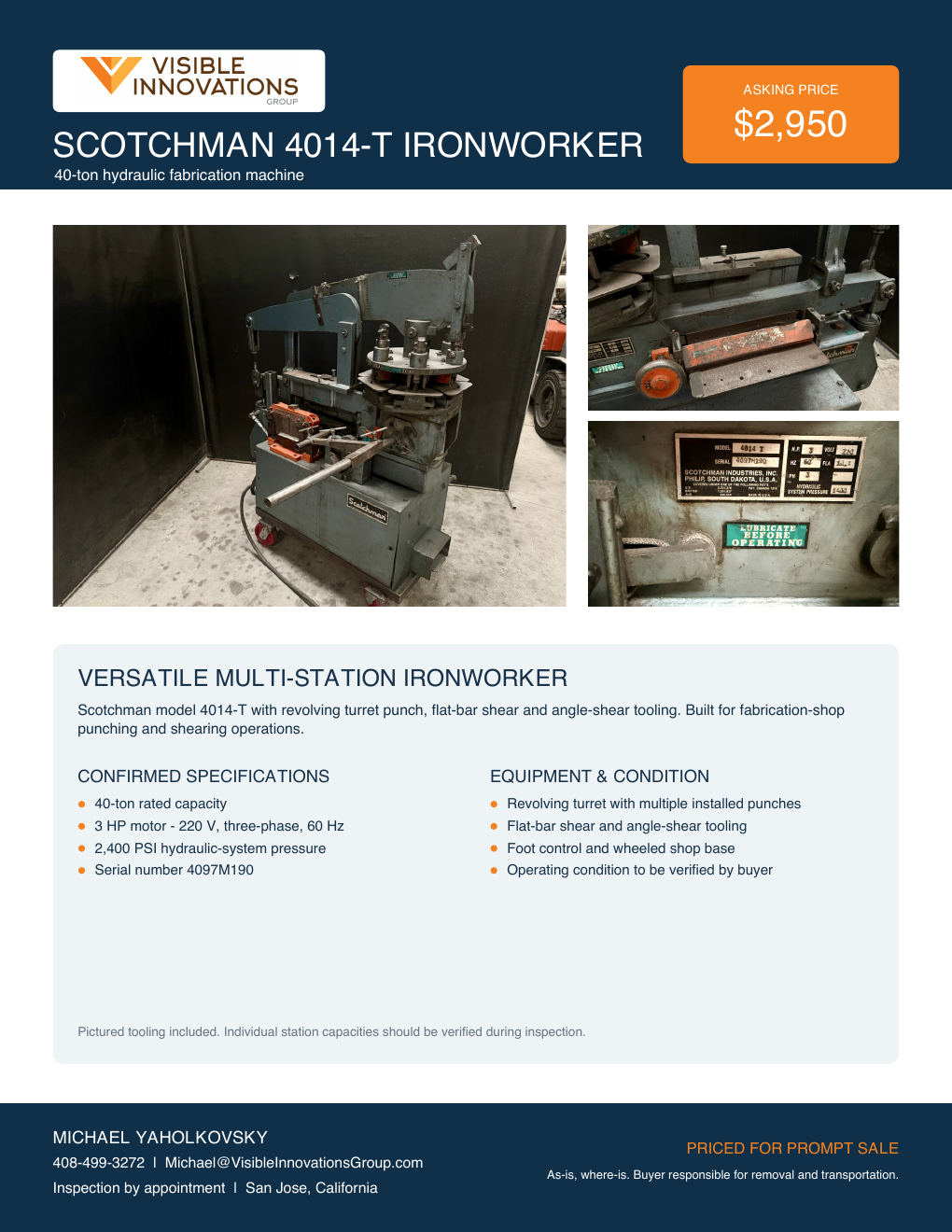

Complete sales flyer
View, print, or forward the one-page flyer.
The flyer includes photographs, the $2,950 asking price, confirmed specifications, sale terms, and direct contact information.
As-is equipment sale
Contact Michael Yaholkovsky
Inspection is available by appointment. The buyer is solely responsible for evaluating the machine and for all disconnection, rigging, loading, removal, and transportation. Seller will not provide rigging or loading assistance.
